Introduction

In this section, we will introduce and model a gacha scenario where all characters in the same rarity level have the same probability of getting pulled, and pulls are performed one at a time (therefore no bonuses are applied). We would like to find the expected number of trials until we obtain any SSR character.

Method

Pulls can be modeled as a Bernoulli Process

In this scenario, the probability of getting each tier is constant, and the probability to pull each character within the tier is the same. Let the probability of pulling an SSR be \(p\), and suppose there are \(n\) characters in the SSR tier, then the probability to pull each individual SSR character is \(\frac{p}{n}\). We also assume that pulls are performed one at a time and under the assumption that no previous pull affects the result of the next pull.

This process can be modeled as a simple Bernoulli process with an unfair coin, where probability of obtaining an SSR character (“success”) is \(p\) and not obtaining an SSR (“failure”) is \((1-p)\). This means we would probably expect on average \(1/p\) pulls to obtain the first SSR.

Poisson Distribution

We notice that the probability of success \(p\) is typically very small in each gacha game, ranging from 0.600% (Genshin Impact) to 2.000% (Arknights) in the examples we use. Therefore, we are safe to approximate the probability of SSR pulls with a Poisson distribution.

\[ f(k; \lambda) = Pr(X=k) = \frac{\lambda^k}{k!}e^{-\lambda} \]

Since \(p\) small, we can approximate \(\lambda = np\). We can subsequently rephrase our question into “in how many trials can we maximize the probability of obtaining exactly 1 SSR card”?

Application in F/GO

We plotted the probabilities of obtaining 1, 2, and 3 SSR cards in 1 to 500 pulls. Here we used the Fate/Grand Order Saint Quartz Summon Distribution Rate on an non-event banner. We define “success” as pulling a 5-star servant (character), and the probability is 1.000% (according to in-game statistics provided).

[1] "Number of pulls that maximizes probability of 1 SSR is 100"
[1] "Number of pulls that maximizes probability of 2 SSRs is 200"
[1] "Number of pulls that maximizes probability of 3 SSRs is 300"

Version Author Date
998f5f3 Lijia Wang 2020-12-16

Trials to first Success

We know that our probability of pulling 1 character is maximized at 100 single pulls, but that information itself is not all that useful. We will use the cumulative distribution function to explore at what point we will obtain a 95% chance of pulling an SSR character through single pulls only.

Each pull is a Bernoulli Variable \(X_i\) and are independentally and identically distributed. Therefore, we can apply the geometric distribution and obtain the probability of obtaining the first success at the \(k\)-th trial:

\[ Pr(X=k) = (1-p)^{k-1}p\]

and we have the cumulative distribution function:

\[ Pr(X\leq k) = 1-(1-p)^k \]

And we would like to find the number \(k\) when \(Pr(X\leq k) \geq 0.95\), which can be easily computed given probability \(p\).

Application in F/GO

In the F/GO case, If we would like to achieve 50% chance of getting an SSR:

\[ Pr(X\leq k) = 1-(1-p)^k = 1-(1-0.01)^k = 0.50\]

\[ k = \frac{log(0.50)}{log(1-0.01)} = 68.96\]

If we would like to achieve 95% chance of getting an SSR:

\[ Pr(X\leq k) = 1-(1-p)^k = 1-(1-0.01)^k = 0.95\]

\[ k = \frac{log(0.05)}{log(1-0.001)} = 298.07\]

And for 99% chance, you would get:

\[ k = \frac{log(0.01)}{log(1-0.01)} = 458.21\]

This means if you saved up for 459 single pulls, you are almost guaranteed to obtain an SSR character from the gacha.

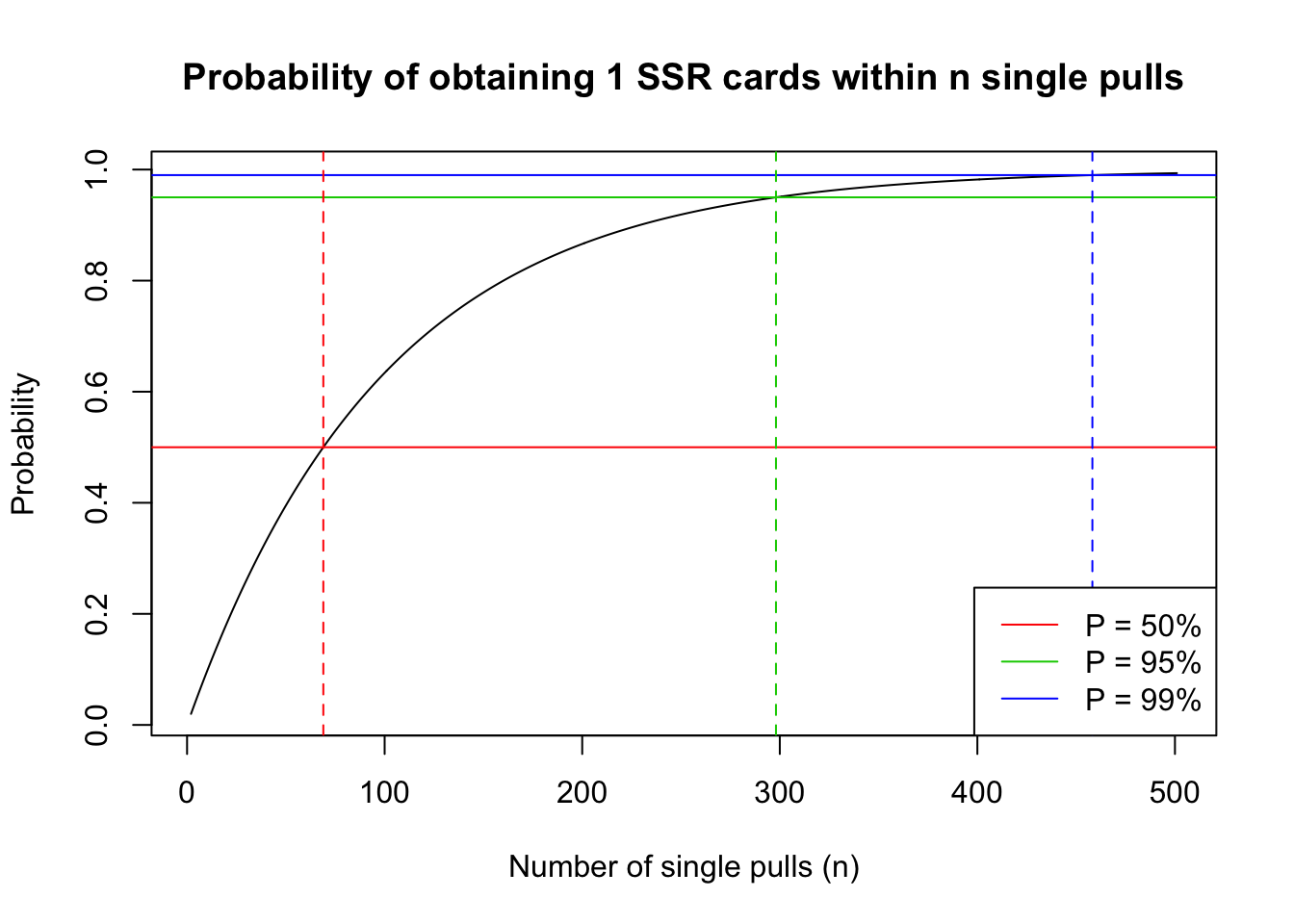

Visualization
